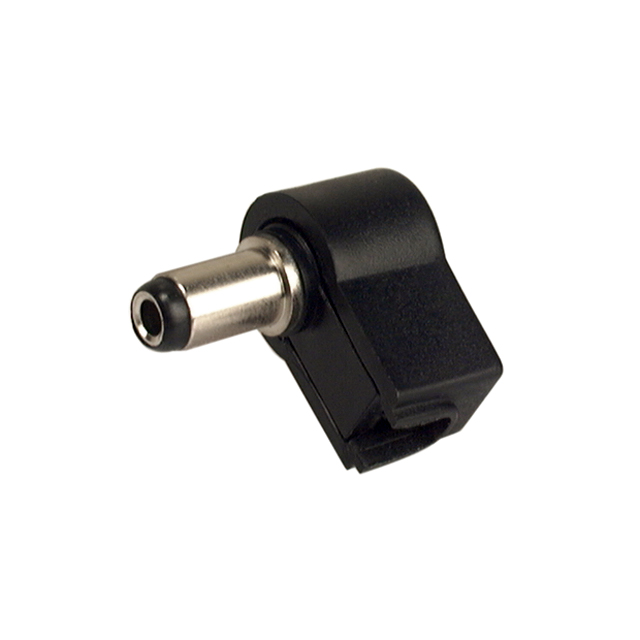

Electrical Characteristics
Specifications
·Gender: Male
·Current rating: 1A
·Voltage rating: 12VDC
·Inner diameter: 2.1mm
·Outer diameter: 5.5mm
·Barrel length: 9.0mm
·Orientation: Right angle
·Mouting type: Cable mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 24VDC 2A
·Withstand voltage: 500VAC for 1 minute
Materials
.Insulator ring: Nylon+fiber, black
.Outer sleeve: Brass, nickel plated
.Ground terminal: Brass, nickel plated
.Terminal: Brass, nickel plated
.Housing: PE, black
