Electrical Characteristics

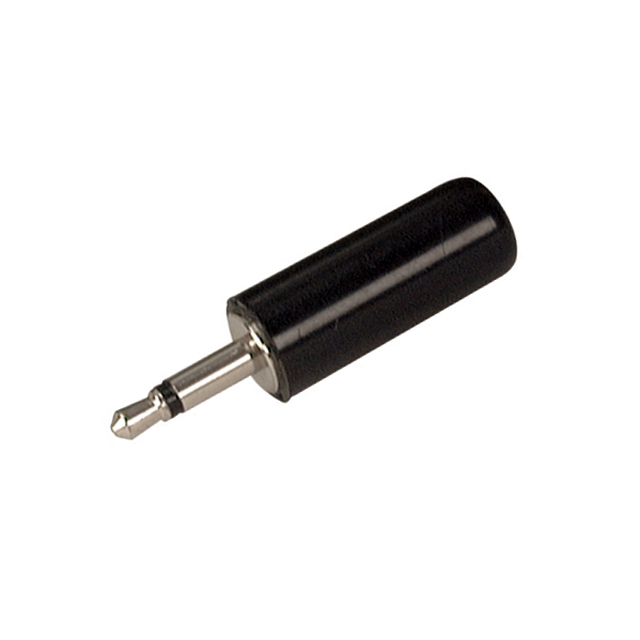

Specifications
·Gender: Male
·No. of contacts: 2
·Pin diameter: 3.5 mm
·Orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Contact resistance: depends on mated connector
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
Materials
·Contact: Brass, nickel plated
·Insulator: Nylon 66 + 30% fiber
·Cover: ABS, black
