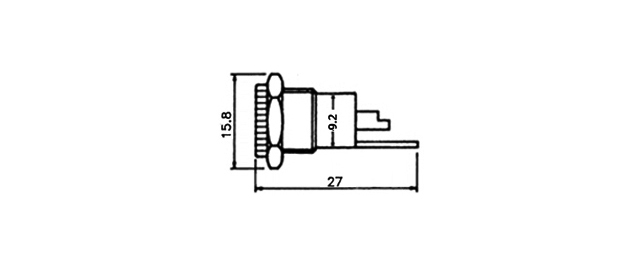

DC power jack
Central pin 2mm

Item No.：K36720A

Unit price (USD)

2+	10+	50+	100+
2.3077	1.3187	0.7692	0.6410

Add

Enter Quantity to Check Lead Time

Current rating: 3A Max.
Voltage rating: 12VDC
Pin diameter: 2.0 mm
Orientation: Straight
Mouting type: Panel mount

DC power jack
Central pin 2.5mm

Item No.：K36720B

Unit price (USD)

2+	10+	50+	100+
2.3077	1.3187	0.7692	0.6410

Add

Enter Quantity to Check Lead Time

Current rating: 3A Max.
Voltage rating: 12VDC
Pin diameter: 2.5 mm
Orientation: Straight
Mouting type: Panel mount

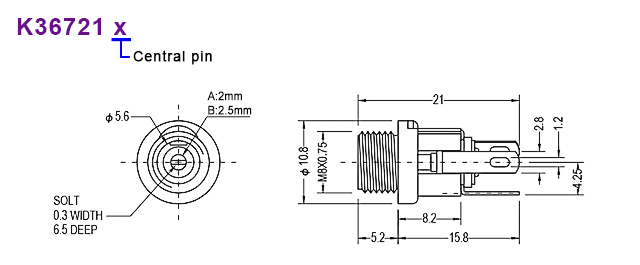

DC power jack
Central pin 2mm

Item No.：K36721A

Unit price (USD)

5+	20+	100+	200+
1.7692	1.0110	0.5897	0.4915

Add

Enter Quantity to Check Lead Time

Gender: Male
Current rating: 0.3A
Voltage rating: 30V DC
Orientation: Straight
Mounting: Panel mount

DC power jack
Central pin 2.5mm

Item No.：K36721B

Unit price (USD)

5+	20+	100+	200+
1.8077	1.0330	0.6026	0.5021

Add

Enter Quantity to Check Lead Time

Gender: Male
Current rating: 0.3A
Voltage rating: 30V DC
Orientation: Straight
Mounting: Panel mount

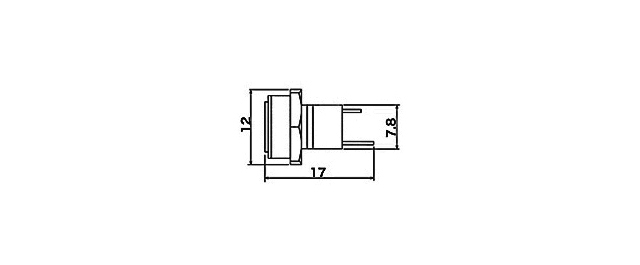

DC power jack
Central pin 2mm

Item No.：K36721C

Unit price (USD)

5+	20+	100+	200+
1.8269	1.0440	0.6090	0.5075

Add

Enter Quantity to Check Lead Time

Gender: Male
Current rating: 500mA
Voltage rating: 12VDC
Pin diameter: 2.0mm
Mounting: Panel mount

DC power jack
Central pin 2.5mm

Item No.：K36721D

Unit price (USD)

5+	20+	100+	200+
1.8269	1.0440	0.6090	0.5075

Add

Enter Quantity to Check Lead Time

Gender: Male
Current rating: 1A
Voltage rating: 12VDC
Pin diameter: 2.5mm
Mounting: Panel mount

DC power jack
Central pin 2mm

Item No.：K36722A

Unit price (USD)

5+	20+	100+	200+
1.5385	0.8791	0.5128	0.4274

Add

Enter Quantity to Check Lead Time

Gender: Male
Pin diameter: 2.0 mm
Mounting: Cable mount
Termination: Solder

DC power jack
Central pin 2.5mm

Item No.：K36722B

Unit price (USD)

5+	20+	100+	200+
1.5385	0.8791	0.5128	0.4274

Add

Enter Quantity to Check Lead Time

Gender: Male
Pin diameter: 2.5 mm
Mounting: Cable mount
Termination: Solder

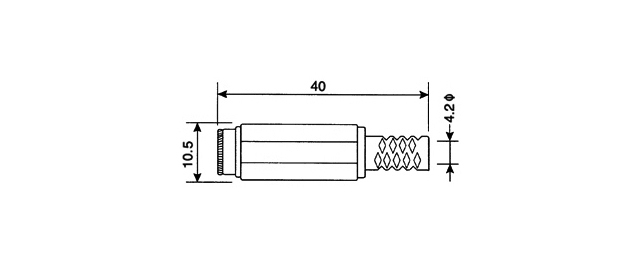

DC power jack
Central pin 2.1mm

Item No.：K36724A

Unit price (USD)

2+	10+	50+	100+
2.3846	1.3626	0.7949	0.6624

Add

Enter Quantity to Check Lead Time

Gender: Male
Pin diameter: 2.1 mm
Current rating: 2A
Voltage rating: 12VDC
Termination: Solder

DC power jack
Central pin 2.5mm

Item No.：K36724B

Unit price (USD)

2+	10+	50+	100+
2.1538	1.2308	0.7179	0.5983

Add

Enter Quantity to Check Lead Time

Gender: Male
Pin diameter: 2.5 mm
Current rating: 3A
Voltage rating: 12VDC
Termination: Solder

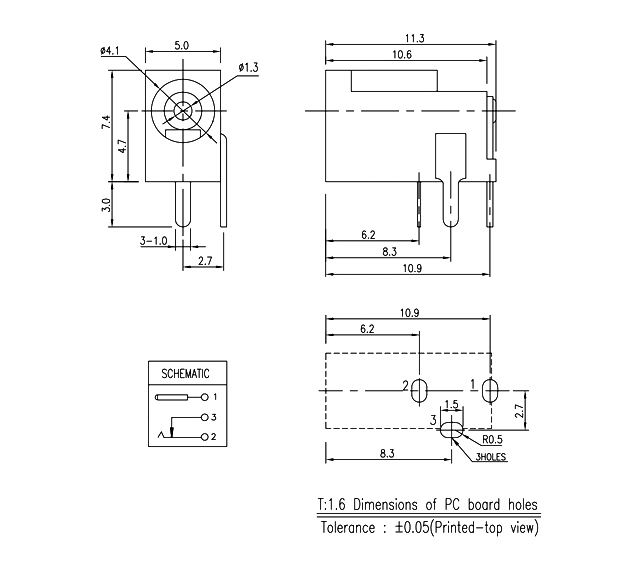

DC power jack
Central pin 1.3mm

Item No.：K37214

Unit price (USD)

20+	100+	500+	1000+
0.3231	0.1846	0.1077	0.0897

Add

Enter Quantity to Check Lead Time

Gender: Jack
Pin diameter: 1.3 mm
Current rating: 1A
Voltage rating: 12VDC
Mounting: Through hole

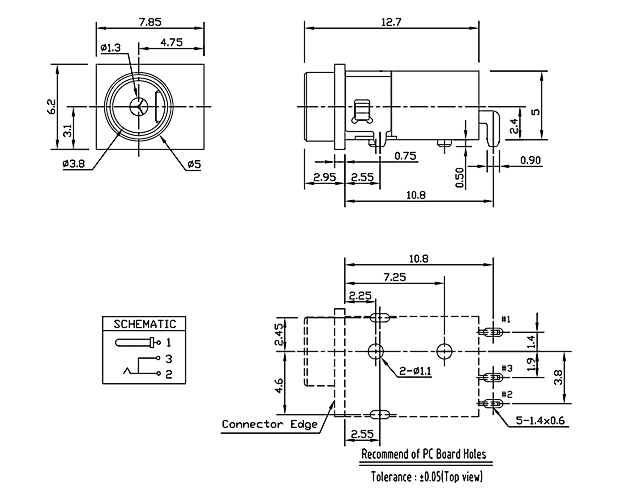

Waterproof DC power jack 5A 20VDC
Central pin 1.3mm

Item No.：K37216

This item can't be ordered online, please send inquiry!!

Send Inquiry

Type: DC socket
Pin diameter: 1.3 mm
Current rating: 5A
Voltage rating: 20VDC
Mounting: Through hole
Protection degree: IPX7

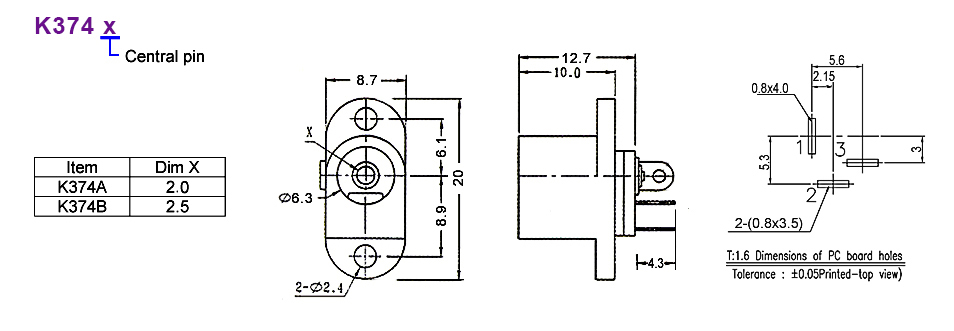

DC power jack
Central pin 2mm

Item No.：K374A

Unit price (USD)

10+	40+	200+	400+
0.4962	0.2835	0.1654	0.1378

Add

Enter Quantity to Check Lead Time

Type: DC socket
Pin diameter: 2.0 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Panel mount

DC power jack
Central pin 2.5mm

Item No.：K374B

Unit price (USD)

5000+
0.1496

Add

Enter Quantity to Check Lead Time

Type: DC socket
Pin diameter: 2.5 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Panel mount

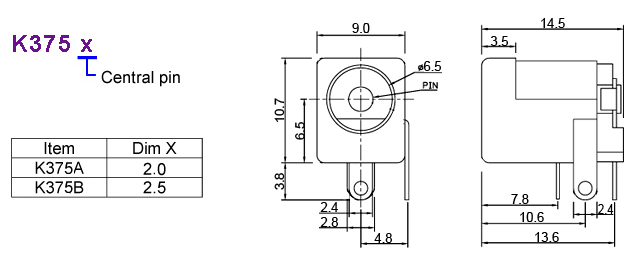

DC power jack
Central pin 2mm

Item No.：K375A

Unit price (USD)

20+	100+	500+	1000+
0.3038	0.1736	0.1013	0.0844

Add

Enter Quantity to Check Lead Time

Type: DC socket
Pin diameter: 2.0 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Through hole

DC power jack
Central pin 2.5mm

Item No.：K375B

Unit price (USD)

20+	100+	500+	1000+
0.3038	0.1736	0.1013	0.0844

Add

Enter Quantity to Check Lead Time

Type: DC socket
Pin diameter: 2.5 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Through hole

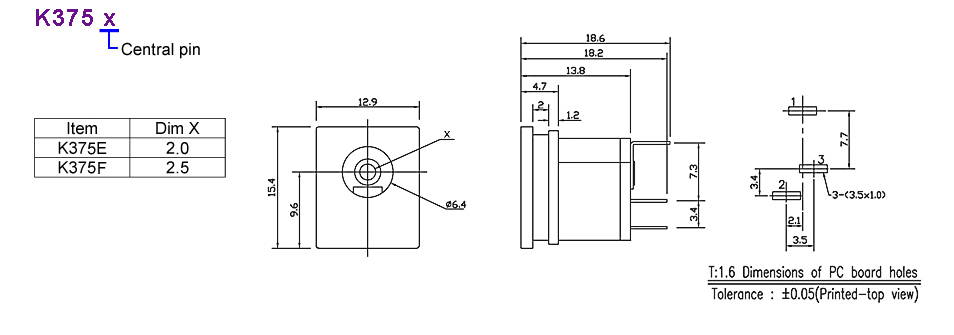

DC power jack
Central pin 2mm

Item No.：K375E

Unit price (USD)

5000+
0.1603

Add

Enter Quantity to Check Lead Time

Gender: Jack
Pin diameter: 2.0 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Through hole

DC power jack
Central pin 2.5mm

Item No.：K375F

Unit price (USD)

5000+
0.1597

Add

Enter Quantity to Check Lead Time

Gender: Jack
Pin diameter: 2.5 mm
Current rating: 3A
Voltage rating: 24VDC
Mounting: Through hole

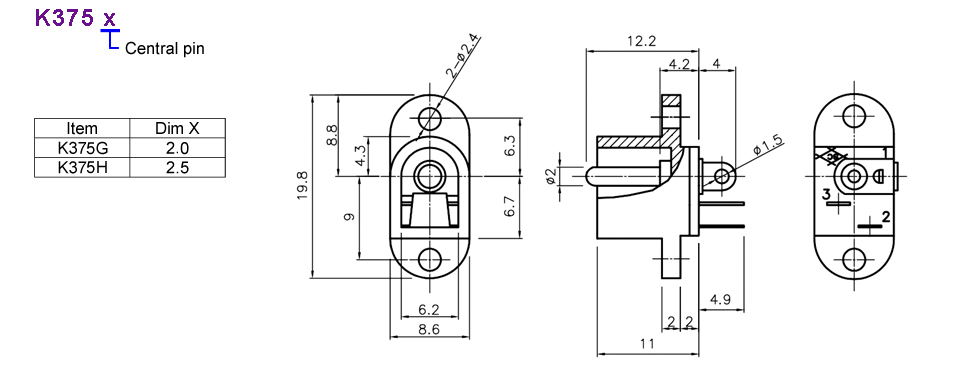

DC power jack
Central pin 2mm

Item No.：K375G

This item can't be ordered online, please send inquiry!!

Send Inquiry

Type: DC socket
Pin diameter: 2.0 mm
Current rating: 5A
Voltage rating: 24VDC
Mounting: Panel mount

DC power jack
Central pin 2.5mm

Item No.：K375H

This item can't be ordered online, please send inquiry!!

Send Inquiry

Type: DC socket
Pin diameter: 2.5 mm
Current rating: 5A
Voltage rating: 24VDC
Mounting: Panel mount
