DC power jack
Central pin 2.5mm
Unit price (USD)
Quantity Price
5000+ 0.1318
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

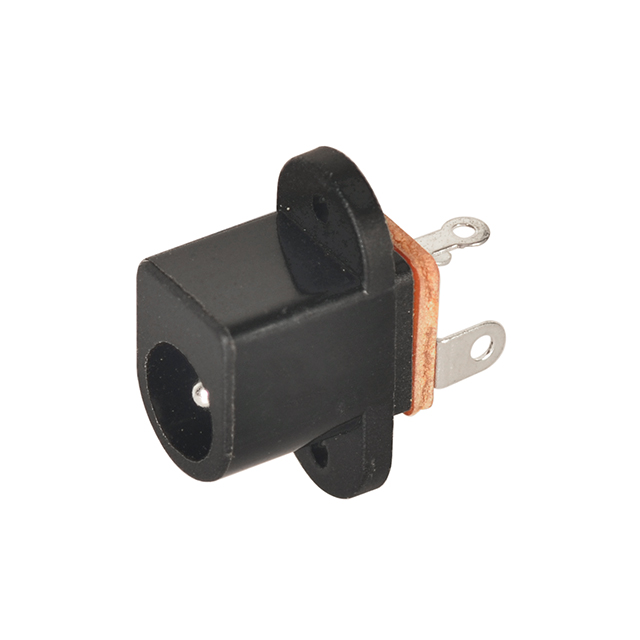

DC Power Jack – Stable & Reliable Power Connector
A DC power jack is a common connector for receiving direct current (DC) power, typically mounted on a PCB or device chassis. It is widely used in laptops, desktop computers, cameras, routers, headphones, audio equipment, and other electronics requiring stable power.
Available in various center pin diameters, the most common are 2.1 mm and 2.5 mm, matching the inner sleeve of DC power plugs. High-current models can handle up to 8 A, making them suitable for demanding applications.

Specifications

·Type : DC power jack
·Gender: Jack
·Type: DC socket
·Pin diameter: 2.5 mm
·Current rating: 3A
·Voltage rating: 24VDC
·Mounting: Panel mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstanding voltage: 500VAC for 1 minute
·Operating temperature: -25°C to +70°C
·Storage temperature: -25°C to +85°C
·Insertion and withdrawal force: 2.94N ~ 29.4N (0.3kgf ~ 3kgf)

Materials

·Terminal: C2680 t=0.3, Sn plated
·Terminal: SUS 301 t=0.2, Sn plated
·Terminal: C2680 t=0.3, Sn plated
·Pin: Copper alloy H59, Cu/Sn plated
·Housing: PBT, black
·Cover: PF
