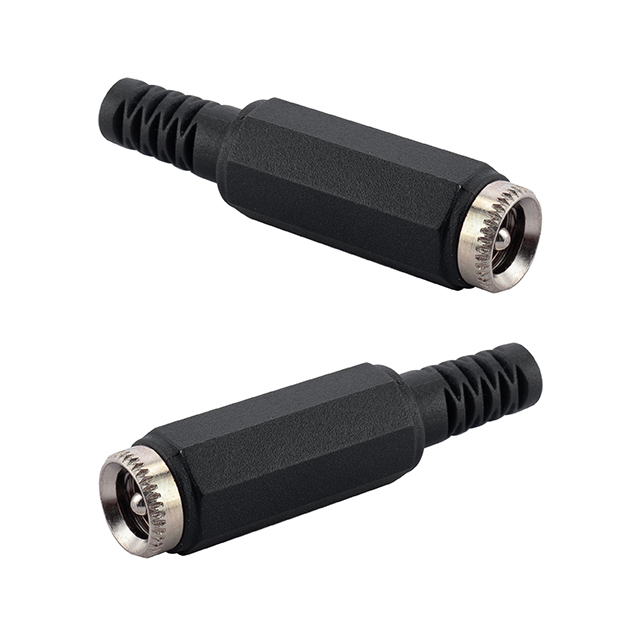

DC power jack
Central pin 2.1mm
Unit price (USD)
Quantity Price
2+ 2.6102
10+ 1.4915
50+ 0.8701
100+ 0.7250
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

DC power jack – stable & reliable power connector
A DC power jack is a common connector for receiving direct current (DC) power, typically mounted on a PCB or device chassis. It is widely used in laptops, desktop computers, cameras, routers, headphones, audio equipment, and other electronics requiring stable power.
Available in various center pin diameters, the most common are 2.1 mm and 2.5 mm, matching the inner sleeve of DC power plugs. High-current models can handle up to 8 A, making them suitable for demanding applications.

Specifications

·Type : DC power jack
·Gender: Male
·Type: DC socket with strain relief
·Current rating: 2A
·Voltage rating: 12VDC
·Pin diameter: 2.1 mm
·Orientation: Straight
·Mounting: Cable mount
·Termination: Solder
·Contact resistance: 20mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstanding voltage: 1000VAC for 1 minute
·Insert and extraction force: 1.0 Kg Max.
·Operating temperature: -25°C to +85°C
·Life: 10,000 cycle
·Length: 40 mm
