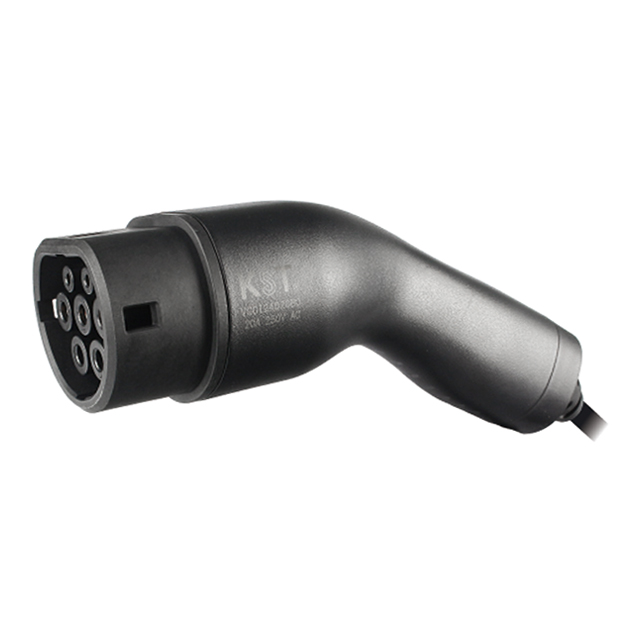

EV charging connector 20A cable length 5M with approval with protective cap
IEC62196-2 type 2 standard
Can reach to IP54
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Features

·Conformity in surfact design with IEC 62196-2 Type 2, as well as product test accordance with IEC 62196-2.
·Ergonomic and streamlined designs allow for user-friendly interatcion.
·High level of protection against severe environment.
·Products passed 5000N driveover test.
·Applicable to connection B and connection C of IEC61851.
Application
·BEV, PHEV, charging pile, cord set and domestic wall-mounted charger, etc.

Specifications

·EV charging cable type: Type 2
·Voltage rating: 250VAC / 480VAC
·Current rating: 20A
·Cable length: 5M
·Lifespan: ≧10000 times
·Flammability rating: UL94V-0
·IP rating: With cap IP54 (Body IP67)
·Operating temperature: -30°C to +50°C
·Plug color: Black
·Main materials: PBT / PC / PA66 / Brass
