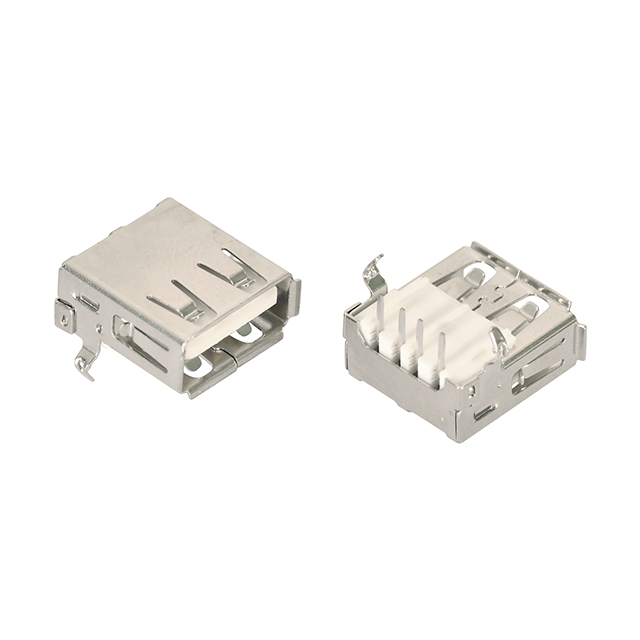

USB A type socket right angle
Unit price (USD)
Quantity Price
20+ 0.4068
100+ 0.2324
500+ 0.1356
1000+ 0.1130
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·USB connector type: A
·Current rating: 1A
·Voltage rating: 250VAC
·Mounting type: Through hole
·Orientation: Right angle
·Termination: Solder
·Contact resistance: 30mΩ Max. before life test; 50mΩ Max. after life test
·Insulation resistance: 1000MΩ Min.
·Withstand voltage: 500VAC for 1 minute without breakdown
·Operating temperature: -55°C to +105°C
·Insertion force: 35 Newtons Max.
·Extraction force: 10 Newtons Min.
·Solderability: Terminal shall be immersed in flux before text, then dip in molten
solder for 5±0.5 sec. at 245±5°C

Materials

·Housing: PBT UL94-V0, white
·Contact: Brass t=0.25mm
·Shell: Steel t=0.3mm, 80u" Min. nickel plated
Finish
·Contact area: 0.8u" Min. gold plated over 40u" nickel Min.
·Solder area: 80u" Min. tin plated over 40u" nickel Min.
