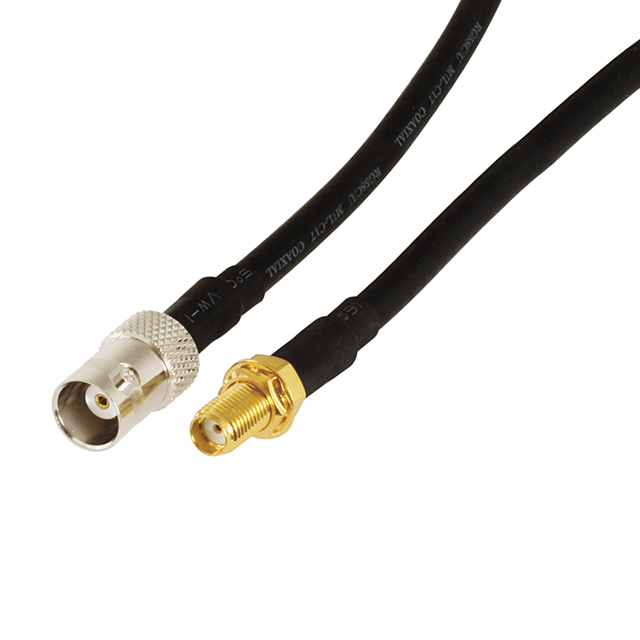

SMA female to BNC female (RG58C/U)
Conductor:(19/0.181TC+LDPEØ2.95+16/7/0.12TC)x1C
Jacket:4.95mm
Cable length:0.5M
  • Item No.:M58692CT
  • Product Range : RF Cables
Unit price (USD)
Quantity Price
300+ 2.8719
Add
Enter Quantity to Check Lead Time
Electrical Characteristics

Specifications

·Connector type A: SMA female
·Connector type B: BNC female
·Cable type: RG58CU
·Impedance: 50Ω
·Body orientation: Straight
.Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Length: 50cm
