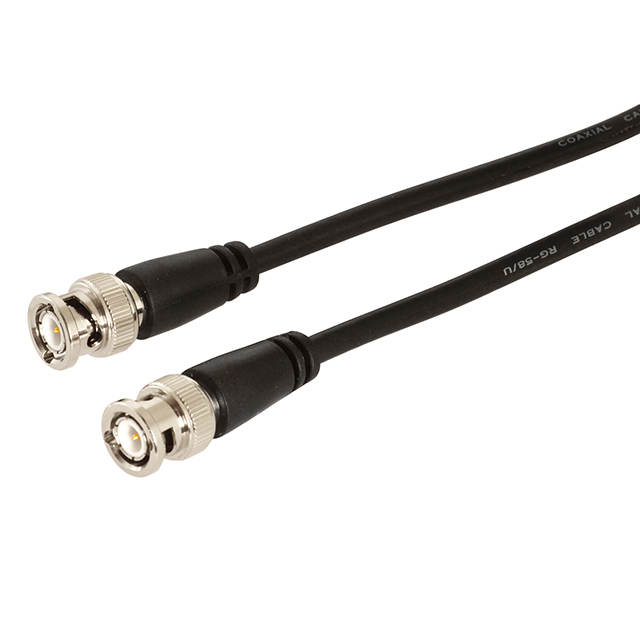

BNC male to BNC male (RG58/U)
Conductor:(1/0.8x1C+AL+64/0.12)x1C
Jacket:5.0mm
Cable length:1.5M
  • Item No.:M586177
  • Product Range : RF Cables
Unit price (USD)
Quantity Price
200+ 1.6008
Add
Enter Quantity to Check Lead Time
Electrical Characteristics

Specifications

·Connector A: BNC male
·Connector B: BNC male
·Cable type: RG58U
·Impedance: 50Ω
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Length: 1.5M
·Color: Black
