Electrical Characteristics

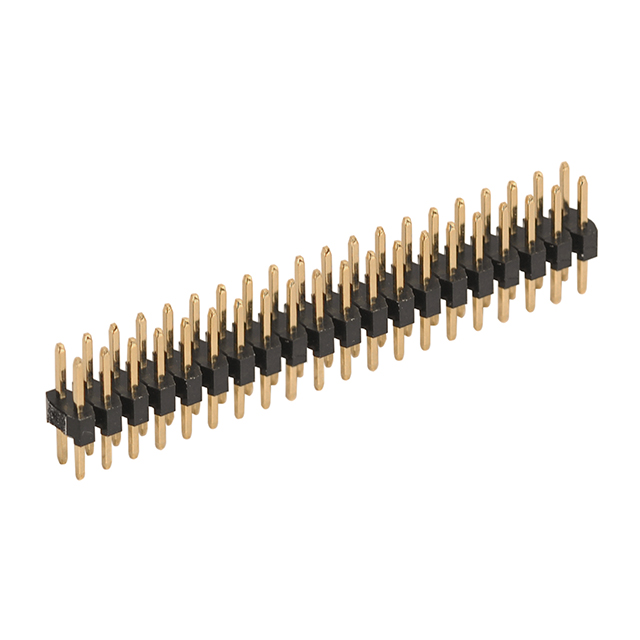

Specifications
·Pitch: 2.0mm
·No. of rows: 2
·No. of contacts: 40
·Current rating: 1A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 800VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C
Materials
·Housing: Thermoplastic (UL94V-0), black
·Terminal: Sq. 0.5mm copper alloy, gold plated
