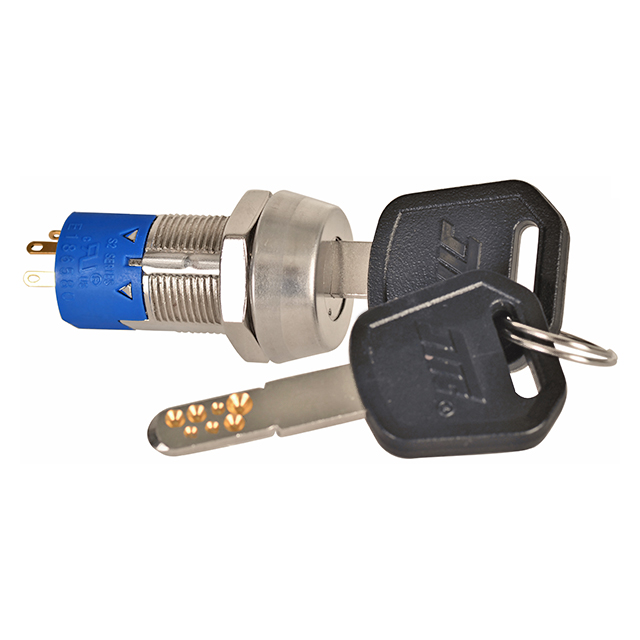

Keylock switch 3P on-on
Zinc alloy die cast housing and cylinder
125V 4A (250V 2A) with approval
1 key pull
Unit price (USD)
Quantity Price
500+ 8.9744
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Descriptions

·Zinc alloy die cast housing and cylinder
·Bright nickel plated standard
·Stainless steel capped bezel with dust shutter mechanism
·7 pin tumbler mechanism
·Reversible dimpled brass keys, nickel plated, with plastic cover
·Gold plated contacts and terminals
·Key withdrawal in one position
·2 position (on-on) 3 terminals
·Hex nut mounted
·All keyed alike or 20 combinations available

Specifications

·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
