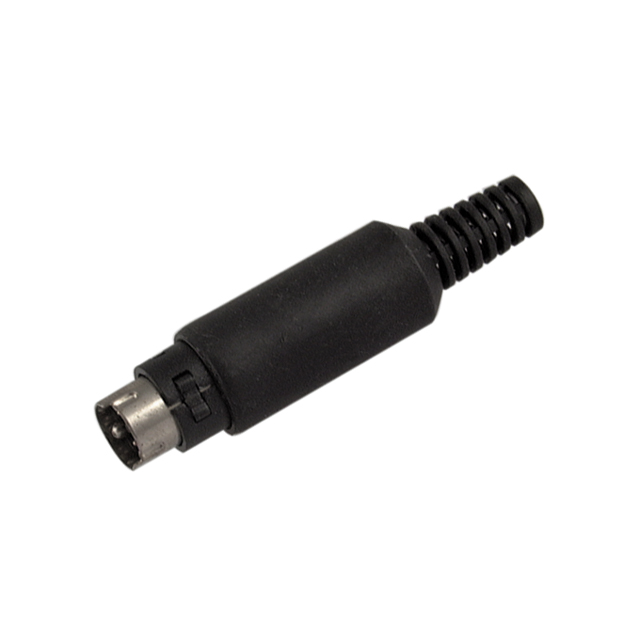

6P mini din plug
  • Item No.:K3163F
  • Product Range : Din Plug
Unit price (USD)
Quantity Price
2+ 1.9655
10+ 1.1232
50+ 0.6552
100+ 0.5460
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·No. of contacts: 6
·Orientation: Straight
·Rating: 1A 100VAC / 2A 12VDC
·Contact resistance: 30mΩ Max. (initial)
·Insulation resistance: 50MΩ Min. at 500VDC
·Dielectric strength: 500VAC for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder

Materials

·Cover: PE+2L
·Shell: ABS
·Metal shield: Brass, nickel plated
·Housing: Nylon 6 + GF
·Contact: Brass flash gold
