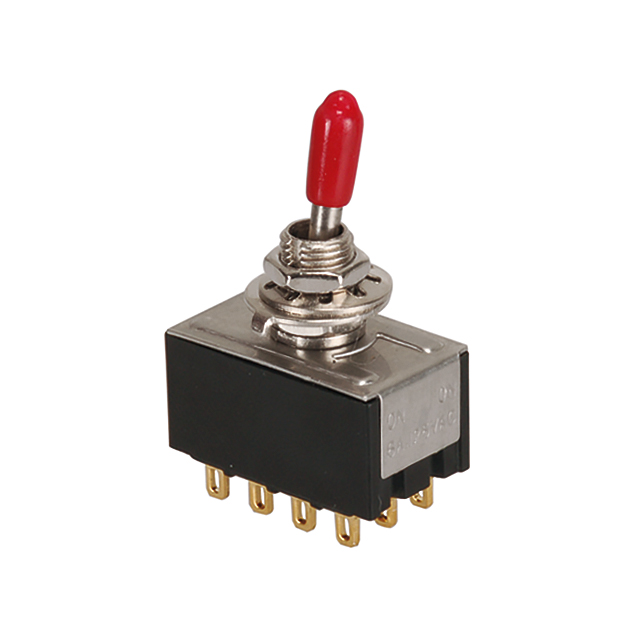

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.
Specifications
·Rating: 5A 120VAC / 2A 250VAC
·Contact resistance: 20mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
