Electrical Characteristics
Specifications

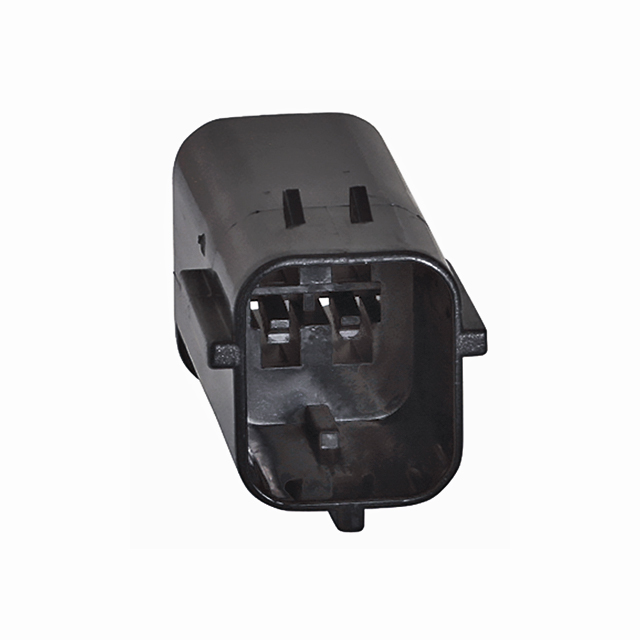

·Type: Automotive connector
·Series: Econoseal J-Mark II connector
·Gender: Female
·Pitch: 4.8mm
·Number of contacts: 4
·Number of Rows: 2
·Current rating: 9A Max.
·Voltage drop: 3mV/A
·Isolation resistance: 100MΩ
·Dielectric resistance: 1000VAC
·Termination method: Crimp
·Operating temperature: -30°C to +105°C
Materials
·Housing: PBT
