Electrical Characteristics
Specifications

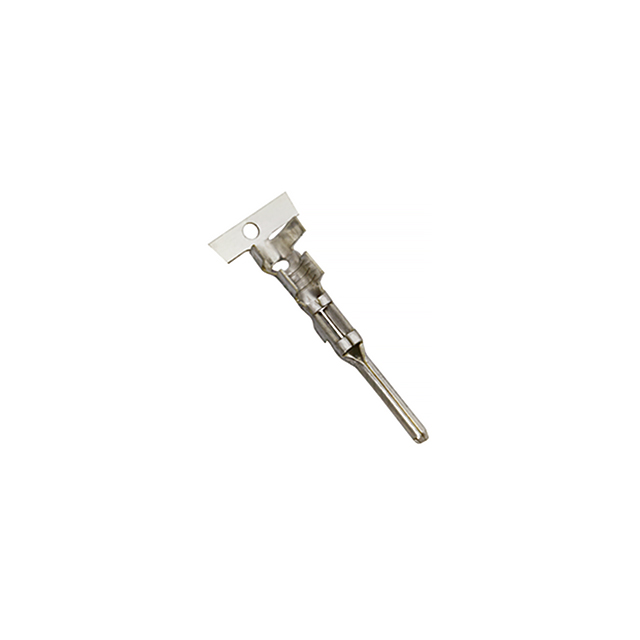

·Type: Automotive connector
·Series: Specialseal 1.5
·Gender: Male
·Current rating: 10A Max.
·Voltage drop: 3mV/A
·Isolation resistance: 100MΩ
·Dielectric resistance: 1500VAC
·Mounting type: Cable mount
·Termination method: Crimp
·Operating temperature: -40°C to +125°C
·Applicable wire size: 18AWG ~ 16AWG
Materials
·Body: Brass
