Electrical Characteristics

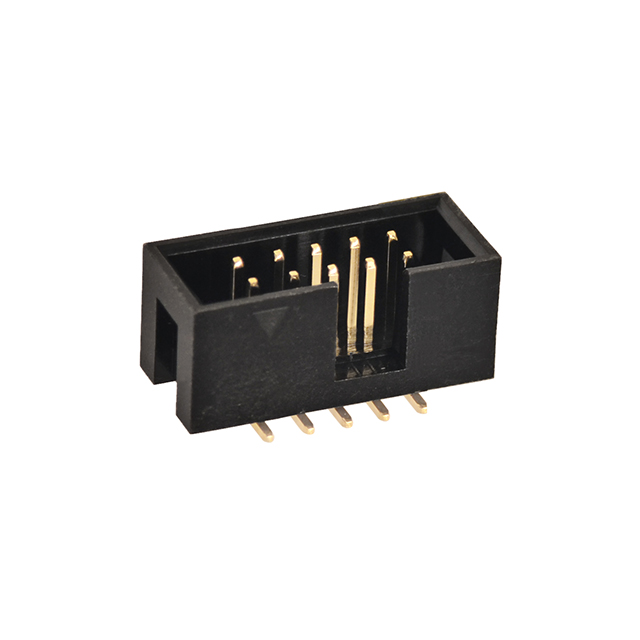

Specifications
·Pitch: 2.54mm
·No. of rows: 2
·No. of contacts: 10
·Current rating: 3A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at 1000VDC
·Withstand voltage: 1000VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C
Materials
·Housing: Thermoplastic (UL94V-0), black
·Terminal: Sq. 0.64mm copper alloy, gold plated
