Electrical Characteristics
Overview

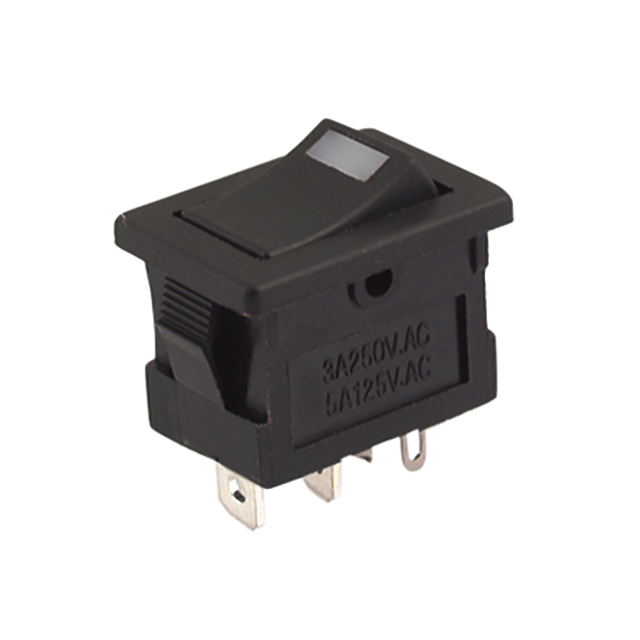

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: SPST
·Switch function: On-Off
·Contact rating: 10A 125VAC / 6A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1800VAC for 1 minute
·Electric life: 10,000 cycles
·Operating force: 350±150gram
