Electrical Characteristics

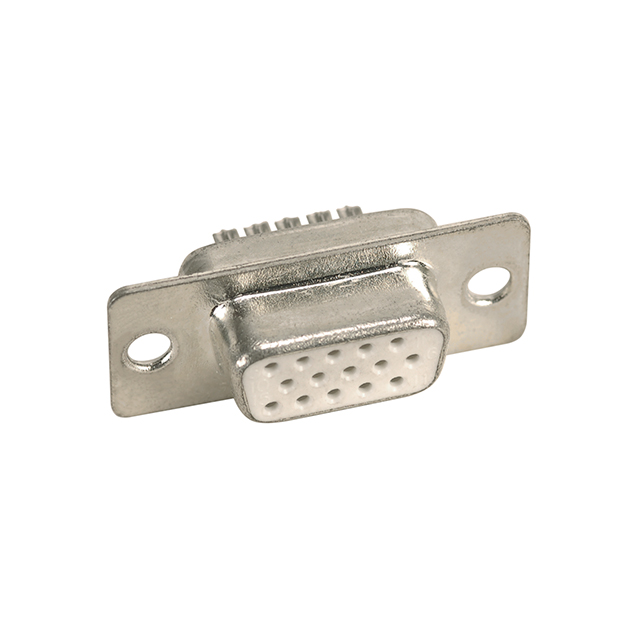

Specifications
·Pitch: 2.29mm
·Gender: Female
·No. of contacts: 15
·Orientation: Straight
·Current rating: 1A Max.
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operation temperature: -55°C to +105°C
Materials
·Insulator: PBT UL94-V0
·Contact: Brass t=0.2mm, gold flashed
·Shell: Cold rolled steel t=0.4mm, nickel plated
