Electrical Characteristics
Specifications

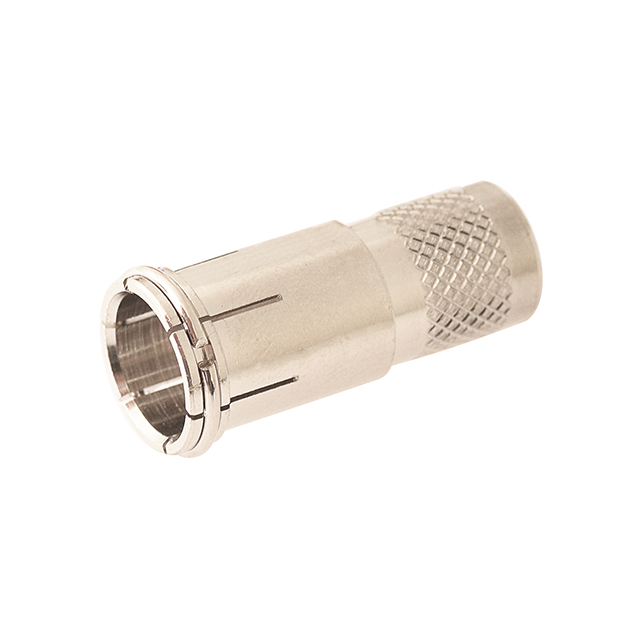

·Gender: Male
·Connector type: F
·Impedance: 75Ω
·Body orientation: Straight
·Mouting type: Cable mount
·Frequency range: 0-2GHz
·Voltage rating: 250VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Ring: Steel, nickel plated
