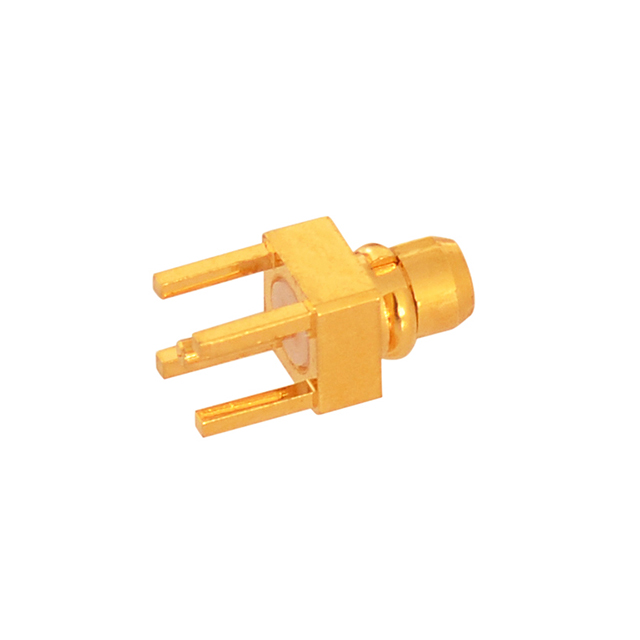

MMCX Connector – Micro RF Connector with 360° Rotation
MMCX connectors are micro-size RF coaxial connectors with snap-on coupling and full rotational flexibility. Common in wearables, wireless devices, and antennas, they operate up to 6 GHz for compact, portable applications.
Specifications
·Gender: Male
·Connector type: MMCX
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: PCB mount
·Frequency range: 0-6GHz
·Voltage rating: 170VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
·Washer: Beryllium copper, gold plated
