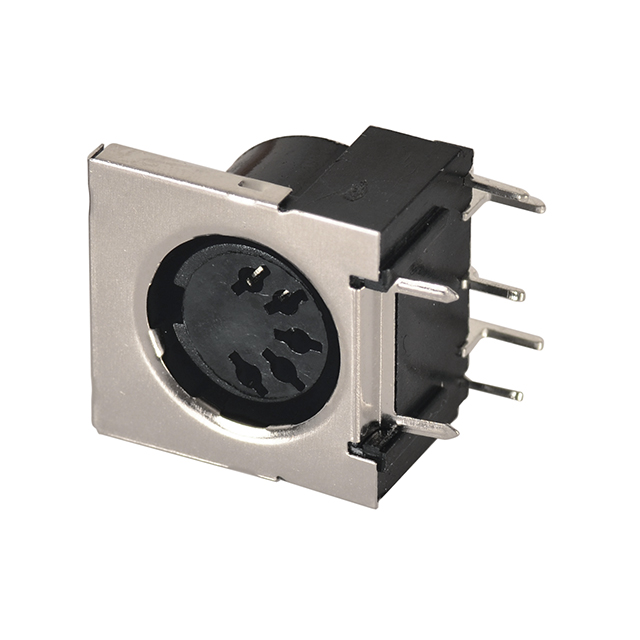

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.

Specifications

·Gender: Female
·No. of contacts: 5
·Current rating: 1A
·Orientation: Right angle
·Contact resistance: 8mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC R.M.S. for 1 minute
·Operation temperature: -55°C to +105°C
·Mounting type: PCB mount
·Termination: Solder
