Electrical Characteristics
Overview

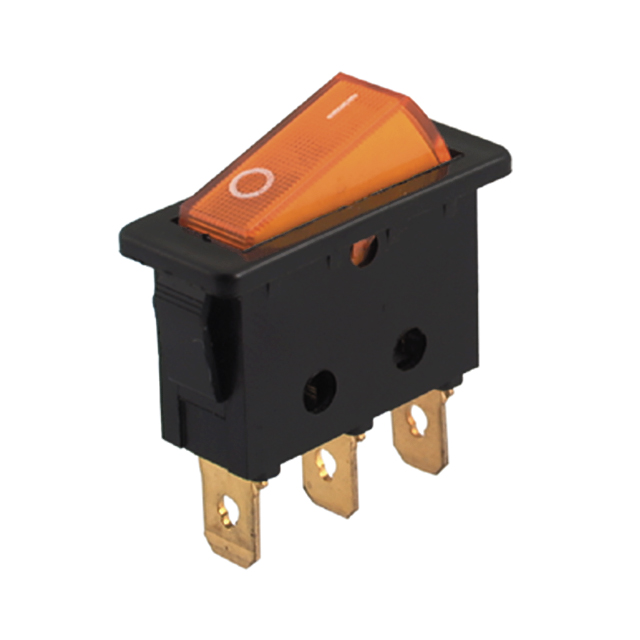

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: SPST
·Switch function: On-Off
·Current rating: 16A / 16A
·Voltage rating: 125VAC / 250VAC
·Actuator shape: Rectangular
·Mounting type: Panel mount
·Terminal: Quick connect
·Actuator color: Red
·Illuminated: Yes
·Contact resistance: 30mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute
