Electrical Characteristics
Overview

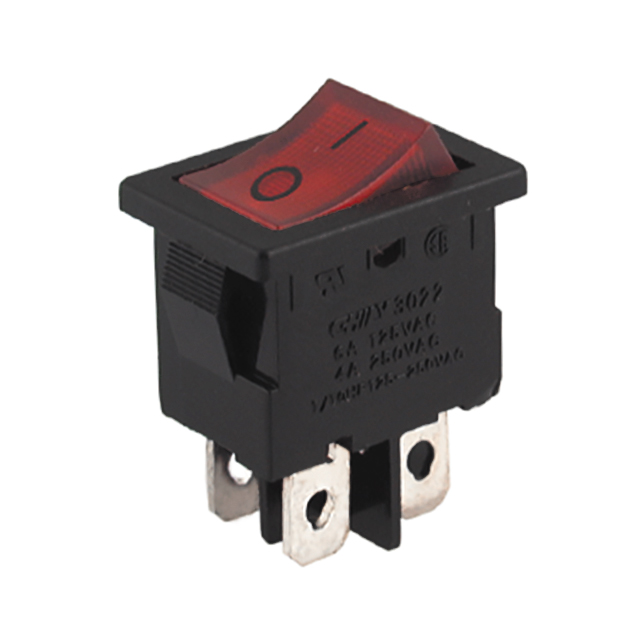

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: DPST
·Switch function: On-Off
·Contact rating: 10A 125VAC / 6A 250VAC
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric withstand voltage: 1500VAC for 1 minute (terminal to terminal)
·Life cycles: Over 10,000 cycles
·Operation force: 500~1200gf
