Overview

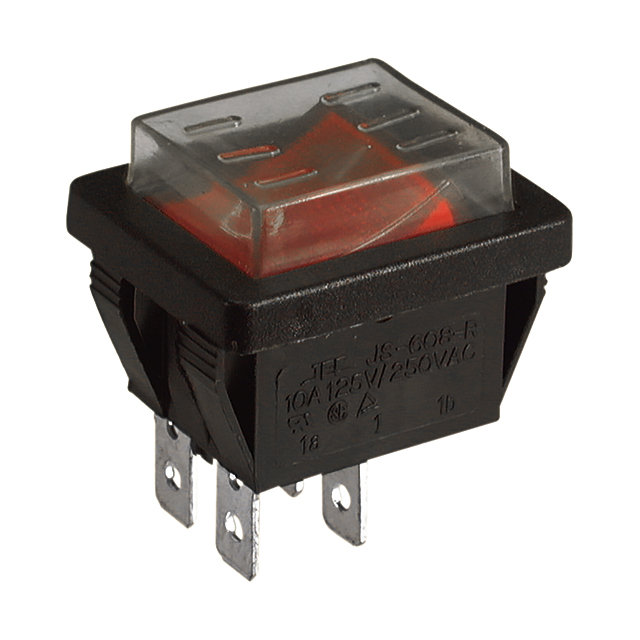

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.

Specifications

·Circuit: DPST
·Switch function: On-Off
·Rating: 10A 125VAC/250VAC (UL/ENEC15), 16A 125VAC (UL/ENEC15)
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating force: 800±30g
·Electrical life: 10,000 cycles at full load
·Operation temperature: -25°C to +85°C
·Soldering: 235°C for 0.5 sec.

Materials

·Housing: Nylon#66 UL 94V-2
·Rocker Nylon#66 UL 94V-2
·Terminal: Copper alloy Sn or Ag plated
·Contactor: Ag alloy
·Spring: Music wire
