Electrical Characteristics

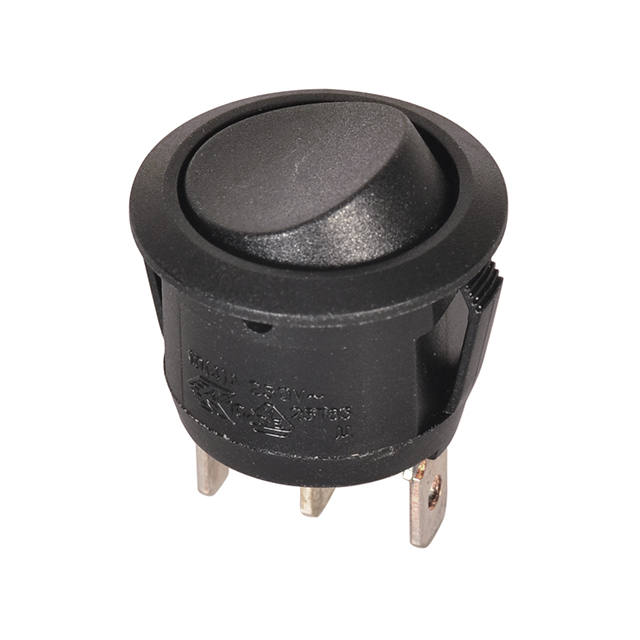

Features
·Illuminated actuators are molded in PC, available with red, amber and green colors.
·Snap-in mounting, easy to install switch into panel.
·Waterproof cover is optional.
·The dimension of frame is 14.5mm.
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC 1 minute
Materials
·Frames: Nylon (UL flame： 94V-2)
·Terminals: Silver plated brass
