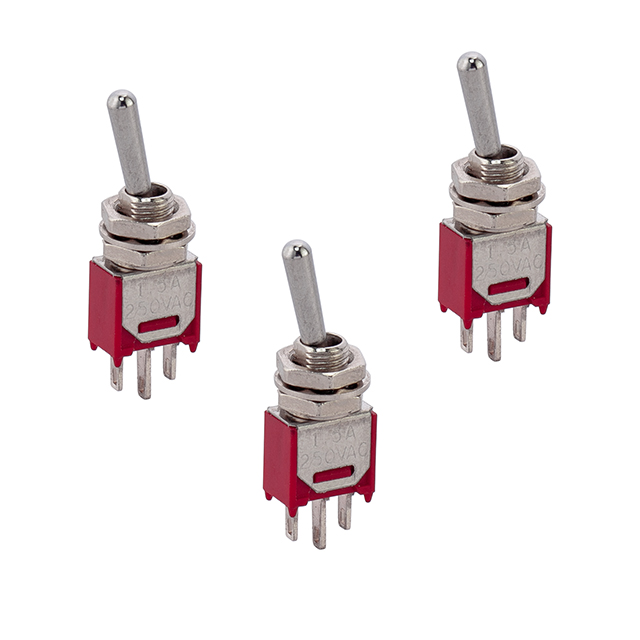

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.

Specifications

·Rating: 3A 120VAC or 28VDC / 1.5A 250VAC or 0.4A 20VAC or DC
·Contact resistance: 20mΩ Max. initial @ 2-4 VDC 100 mA for silver plated contacts
·Insulation resistance: 1,000MΩ Min.
·Dieletric strength: 1,000V RMS @ sea level
·Electrical life: 30,000 make-and-break cycles at full load
·Operating temperature: -30°C to +130°C

Materials

·Case: Diallyl phthalate (DAP) (UL94V-0)
·Actuator: Brass, nickel plated
·Bushing: Brass, nickel plated
·Housing: Stainless steel
·Terminal/contact: Brass, with silver plated or gold over silver
·Switch support: Brass, tin plated
·Center contact & terminal: Epoxy
