Overview

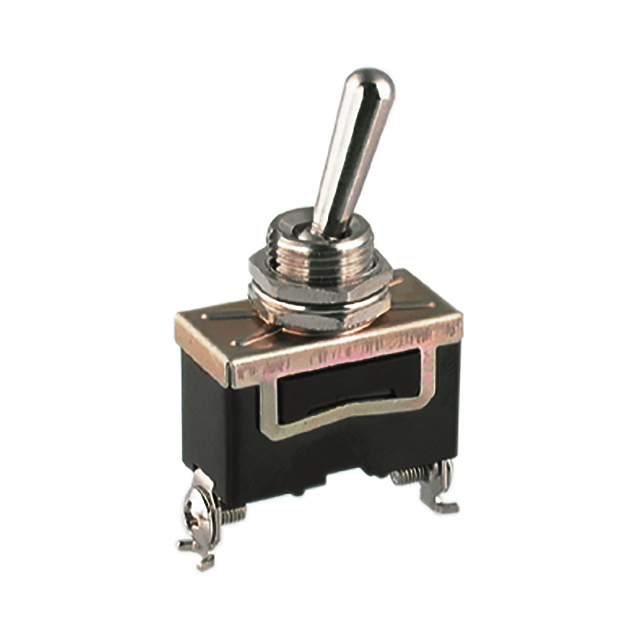

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.
Specifications
·Rating: 10A 250VAC
·Switch operation: On-off
·Contact configuration: SPST
·Mounting type: Panel mount
·Terminal type: Screw
·Contact resistance: 20mΩ Max. at 1A 2-4VDC
·Insulation resistance: 200MΩ Min. at 500VDC
·Withstand voltage: 1500VAC or more
