Elektrische Eigenschaften

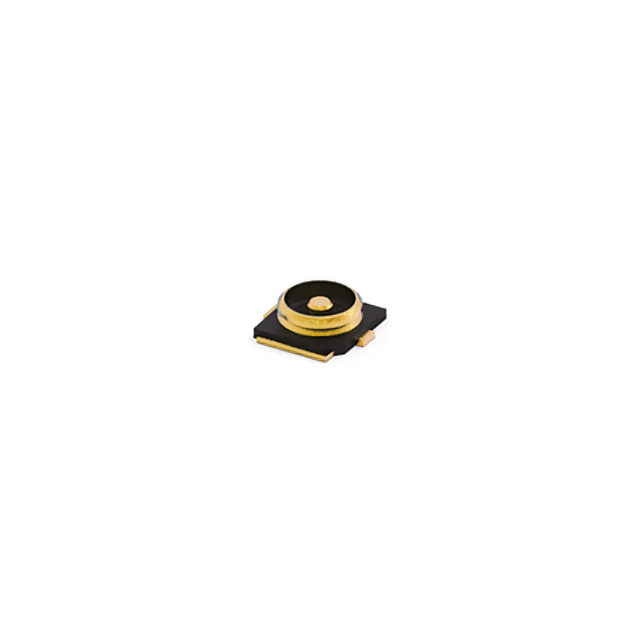

Specifications
·Gender: Female
·Connector type: MHF
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Surface mount (SMD)
·Frequency range: 0-6GHz
·Voltage rating: 60VAC
·Contact resistance: 20mΩ (initially)
·Insulation resistance: 500MΩ
·Withstand voltage: 200VAC for 1 minute
Materials
.Center contact: Brass, Gold flash over nickel
.Ground: Phosphor bronze, gold flash over nickel
.Housing: LCP, UL94V-0, Black
