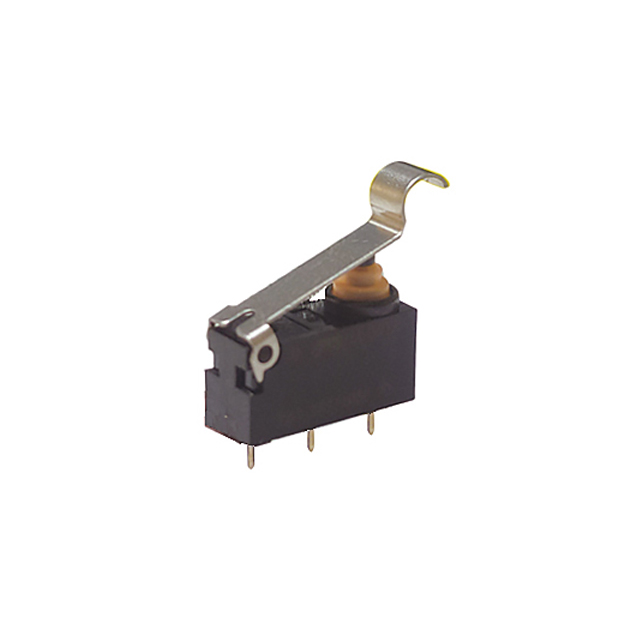

Micro Switch – Precision Snap-Action Switch
Micro switches are compact snap-action switches requiring minimal force for actuation. Found in industrial controls, appliances, and automotive systems, they are valued for long life, precise switching, and varied actuator styles.

Features

·Small dimensions, just 13.3x5.3x7.0mm
·Good feeling and more actuators are applied

Specifications

·Circuit: SPDT
·Switch function: On-On
·Rating: 1A 24VDC/ 2A 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 600VAC for 1 minute
·Operating force: 75gf
·Operating temperature: -40°C to +85°C
·Mechanical life: 1,000,000 cycles
·Electrical life: 100,000 cycles
·Protection degree: IP67
