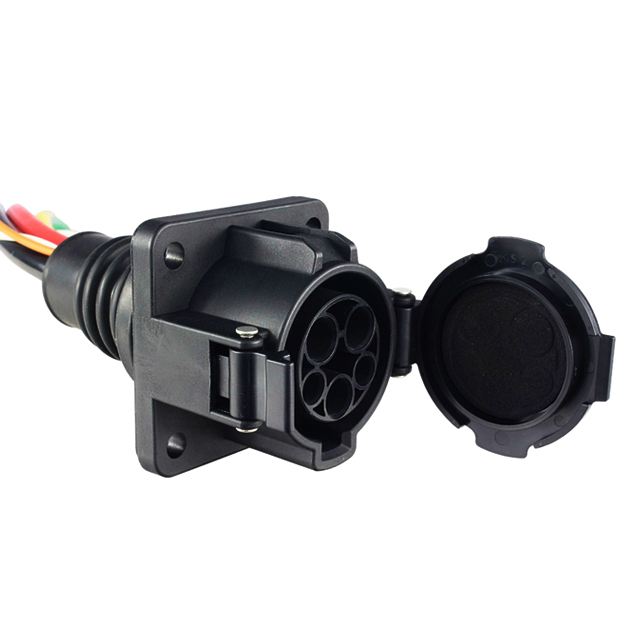

EV charging socket 80A cable length 1M with UL approval with protective cap
SAE J1772 standard
Can reach to NEMA 4
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Features

·Conformity in surfact design with SAE J1772, as well as product test accordance with UL2251.
·Ergonomic and streamlined designs allow for user-friendly interatcion.
·High level of protection against severe environment.
·Products passed 5000N driveover test.
·Applicable to connection B and connection C of IEC61851.
Application
·BEV, PHEV, charging pile, cord set and domestic wall-mounted charger, etc.

Specifications

·Voltage rating: 240VAC
·Current rating: 80A
·Cable length: 1M
·Lifespan: ≧10000 times
·Flammability rating: UL94V-0
·Protection level: NEMA 4 (with plug)
·Operating temperature: -30°C to +50°C
·Cable specification: 2x5AWG+1x6AWG+2x18AWG
·Color: black
·Main material: PBT / PC / PA66 / Copper alloy
