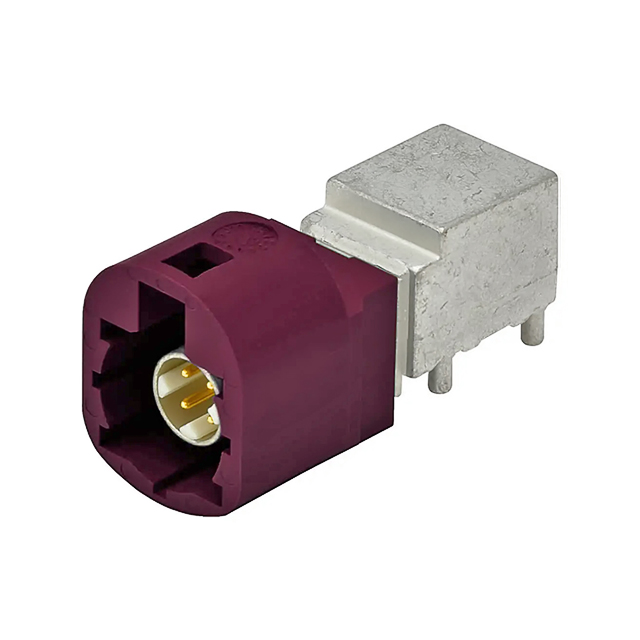

Specifications

·Gender: Male
·Body orientation: Right angle
·Mouting type: Through hole
·Termination: Solder
·Impedance, differential mode: 100Ω differential signalling
·Frequency: DC to 2GHz
·Signal contact resistance: 10mΩ Max.
·Insulation resistance: 1000MΩ Min.
·Insertion loss: 0.1dB Max. at 1GHz
·Return loss: 20dB Min. to 1GHz, 17dB Min. to 2GHz
·Temperature range: -40°C to +105°C
·Mating cycles: 25 Min.
·Engagememt force: 30N Max.
·Disengagement force: 5N Min.
·Retention force latch: 110N Min.
·Coding efficiency: 80N Min.
·Coding color: Black, white, blue, bordeaux, green, brown, biue grey, heather violet, beige, curry, yellow green, light green, water blue

Materials

·Insulator: PA
·Contacts: Brass
·Outer contacts: Brass
·Contact plating: 6u" selective gold plated (contact area), 80u"~160u" tin plated (solder tails area)
