Electrical Characteristics

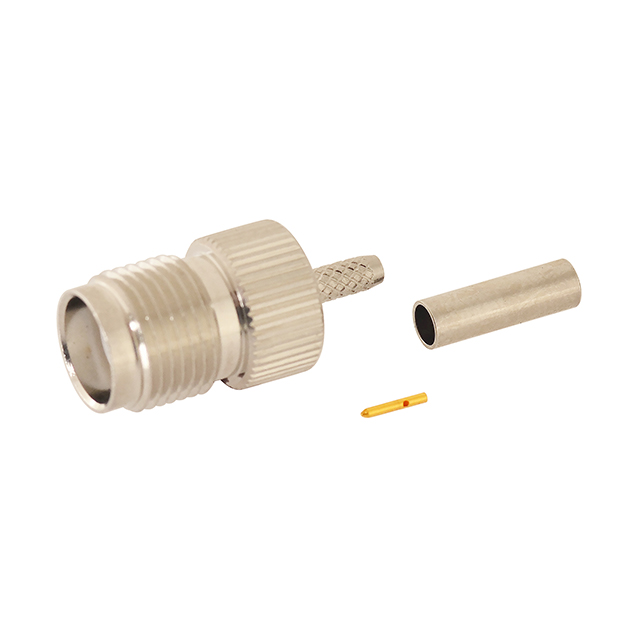

Specifications
·Gender: Female
·Connector type: Reverse polarity TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Bullet contact: Brass, gold plated
·Press washer: Brass, nickel plated
·Insulator: Teflon
·Pin: Brass, gold plated
·Ferrule: Brass, nickel plated
