Electrical Characteristics

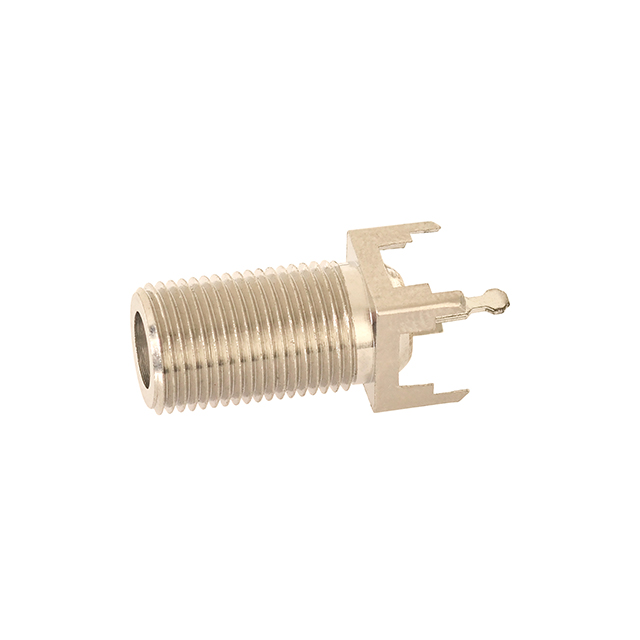

Specifications
·Gender: Female
·Connector type: F
·Impedance: 75Ω
·Body orientation: Straight
·Mounting type: PCB mount
·Termination: Solder
.Frequency range: 0-2GHz
.Voltage rating: 250VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
