Electrical Characteristics
Specifications

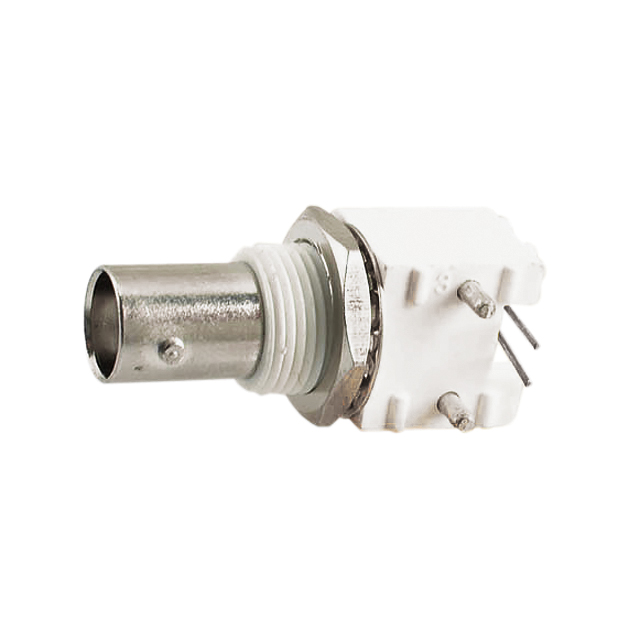

·Gender: Female
·Connector type: BNC
·Impedance: 50Ω
·Body orientation: Right angle
·Mounting type: Panel mount
·Termination: Through hole
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Zinc, nickel plated
·Pin: Phosphor bronze, gold plated
·Insulator: POM, white
·Insulator: PP, white
·Housing: PBT, white
·Contact wire: Brass, tin plated
·Fixture: Brass, tin plated
·Nut: Brass, nickel plated
·Washer: Steel, nickel plated
