Electrical Characteristics

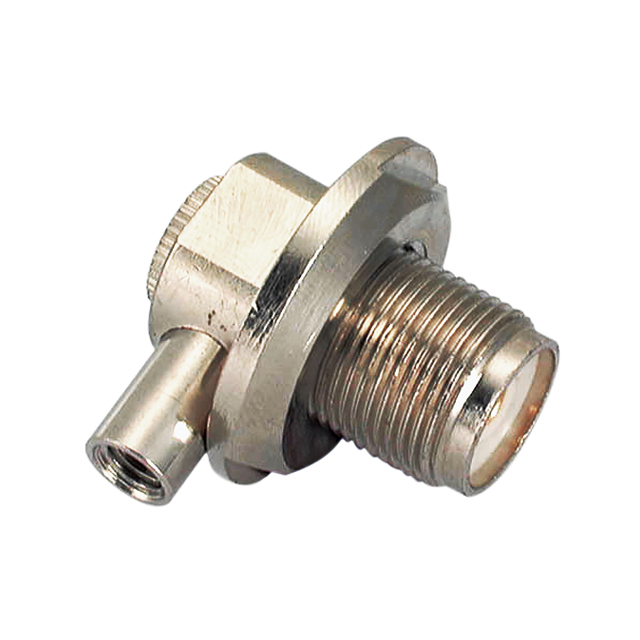

Specifications
·Gender: Female
·Connector type: UHF
·Impedance: 50Ω
·Body orientation: Right angle
·Mounting type: Cable mount
·Frequency range: 0-300MHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Nut: Brass, nickel plated
·Pin: Brass, gold plated
·Insulator: Delrin, white
