Electrical Characteristics
Specifications

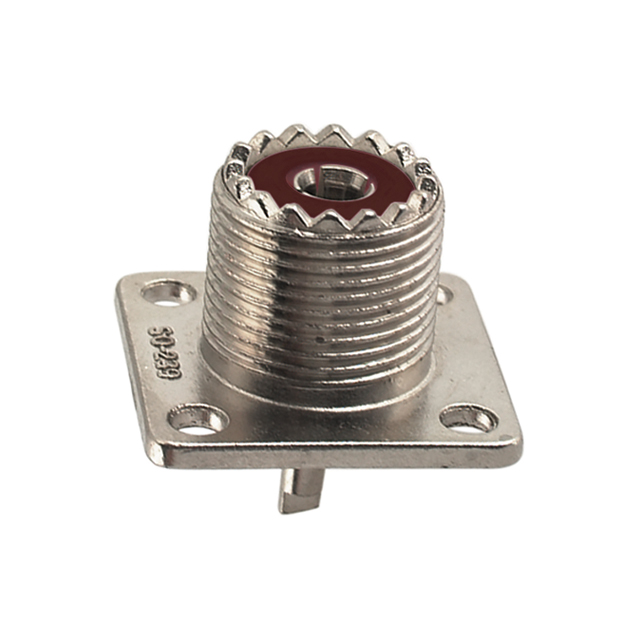

·Gender: Female
·Connector type: UHF
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Chassis mount
·Termination: Solder
·Frequency range: 0-300MHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Zinc diecast, nickel plated
·Insulator: Bakelite, brown
·Pin: Brass, nickel plated
