Electrical Characteristics
Specifications

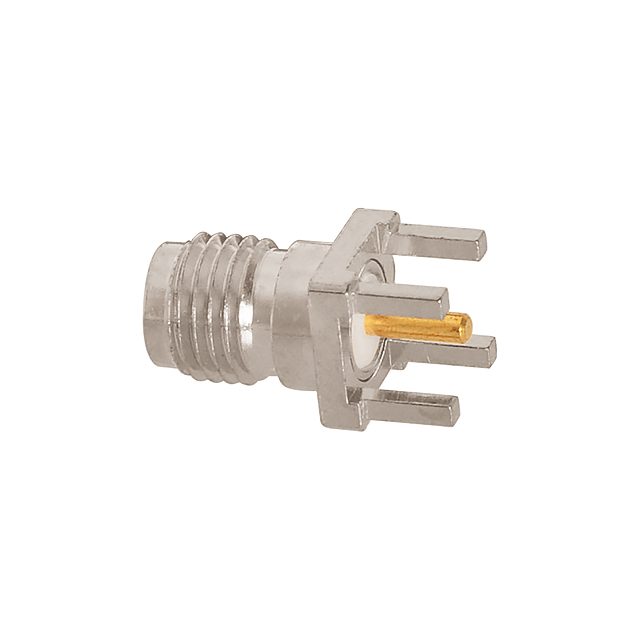

·Gender: Female
·Connector type: SMA
·Mounting type: PCB mount
·Impedance: 50Ω
·Termination: Solder
·Body orientation: Straight
·Frequency range: 0-18GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Insulation: Teflon
·Pin: Phosphor bronze, gold plated
·Press washer: Brass, nickel plated
