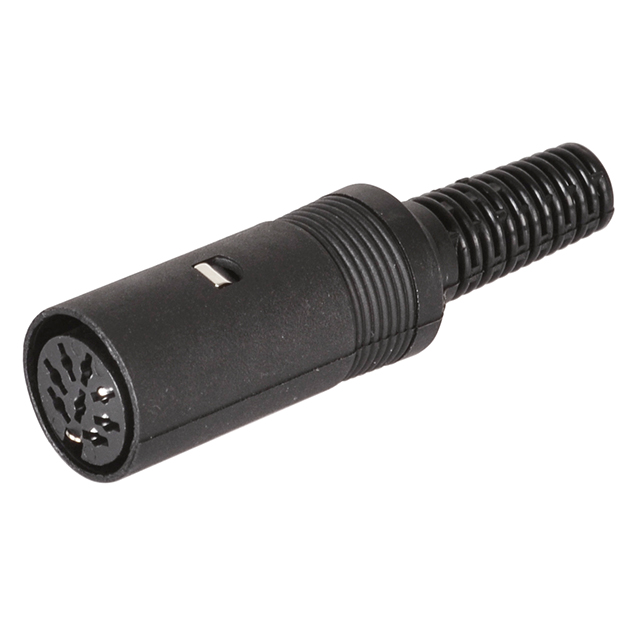

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.

Specifications

·Gender: Female
·No. of contacts: 8
·Rating: 1A
·Orientation: Straight
·Contact resistance: 30mΩ Max. (initial)
·Insulation resistance: 1000MΩ Min.
·Withstand voltage: 750VAC for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder

Materials

·Shell: Spcc, t=0.30mm
·Insulator:High temperature thermoplastic with g.f,UL94v-0
·Contact terminals: Cooper alloy,t=0.20mm
