Electrical Characteristics

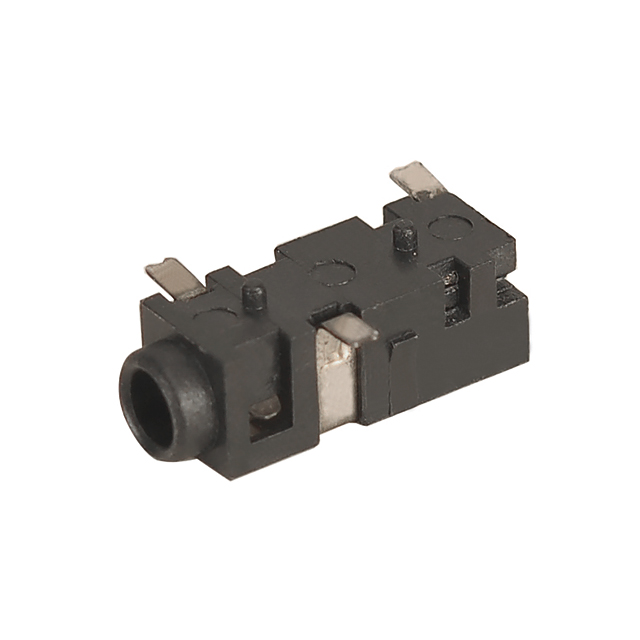

Specifications
·Gender: Female
·No. of poles: 3
·Pin diameter: 2.5 mm
·Orientation: Right angle
·Mounting type: Surface mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Termination: Solder
Materials
.Earth terminal: Phosphor copper 0.2t, silver plated
.Ring spring: Phosphor copper 0.2t, silver plated
.Tip spring: Phosphor copper 0.3t, silver plated
.Housing: PA9T, black color
