Electrical Characteristics

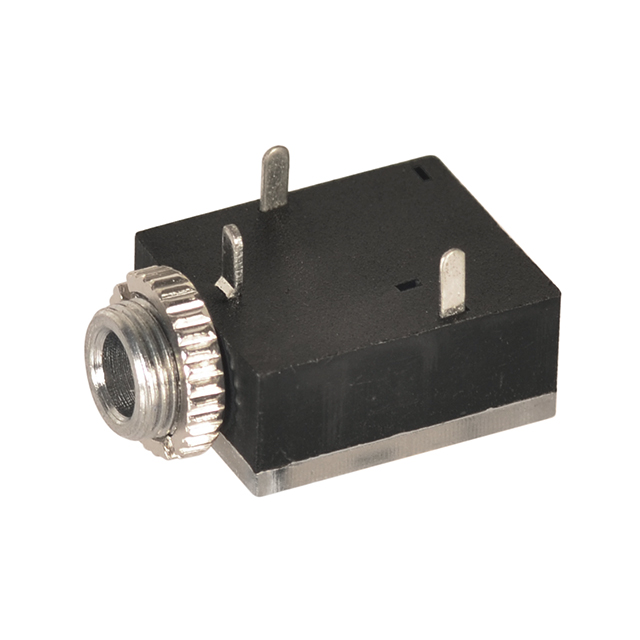

Specifications
·Gender: Female
·No. of poles: 3
·Pin diameter: 3.5 mm
·Current rating: 1A
·Voltage rating: 12V DC
·Orientation: Right angle
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Insertion force: 3N~30N (0.3~3kgf)
·Withdrawal force: 3N~30N (0.3~3kgf)
·Ambient temperature: 15°C to 35°C
·Termination: Solder
Materials
·Earth terminal: C2680 t=0.45, SN plated
·Tip spring: C5191 t=0.25, SN plated
·Ring spring: C5191 t=0.25, SN plated
·AXIS support: C2680, Ni plated
·Cover: PC
·Housing: PBT 4815
