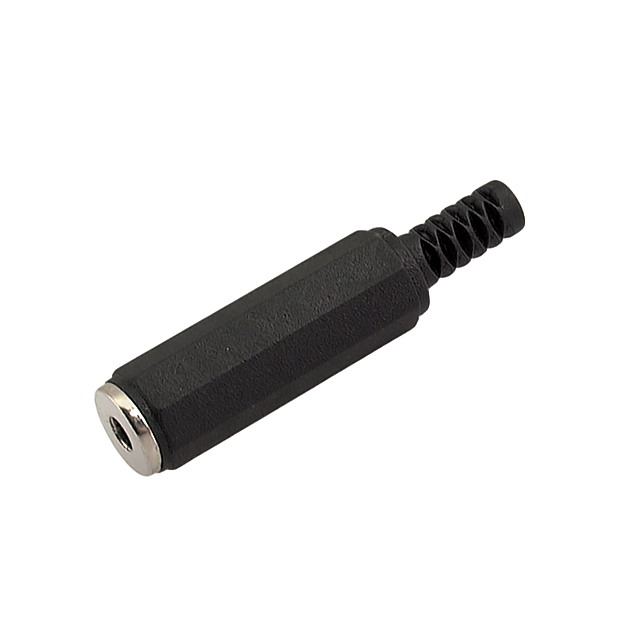

Phone Jack – 2.5 mm / 3.5 mm / 6.35 mm Socket
Phone jacks (female) for 2.5 mm, 3.5 mm, and 6.35 mm connectors are used in audio equipment, test panels, and measuring instruments. Available in panel-mount, PCB-mount, and surface-mount styles, they support TS, TRS, and TRRS connections. Variants may feature locking mechanisms or high-durability metal sleeves for professional setups, making them ideal for plug-in probes, signal generators, and modular lead systems.
Specifications
·Gender: Female
·Type: Phone jack
·No. of contacts: 3
·Pin diameter: 3.5 mm
·Orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Length: 39 mm
