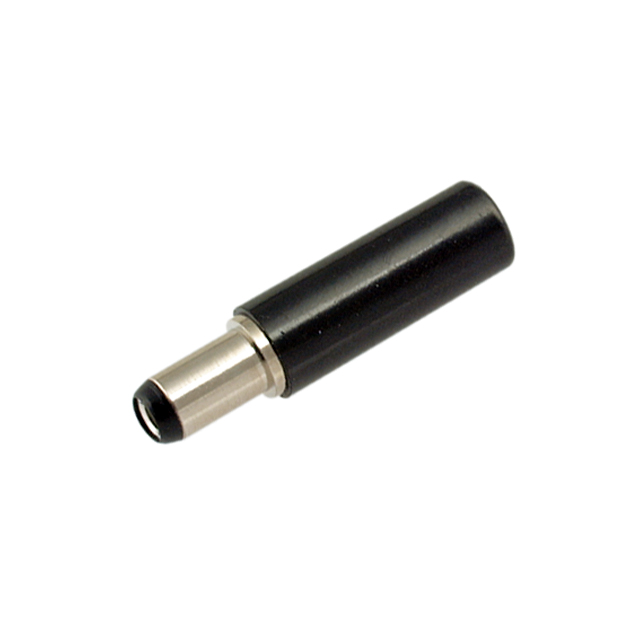

DC plug 2.1x5.5 (L9)
Unit price (USD)
Quantity Price
5+ 1.1154
20+ 0.6374
100+ 0.3718
200+ 0.3098
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

DC power plug (barrel connector) – reliable power supply connection
A DC power plug, also known as a barrel connector, is commonly used to deliver direct current (DC) power from a power supply to small devices and equipment. Typically located on the power cord, it consists of concentric metal sleeves separated by an insulator.
Standard DC plugs have two conductors: positive (power) and negative (ground). Correct polarity ensures proper voltage and current delivery, preventing equipment damage. Available in various barrel diameters and lengths, the most common sizes are 5.5 mm outer with 2.1 mm inner, and 5.5 mm outer with 2.5 mm inner.

Specifications

·Type : DC power plug (barrel connector)
·Gender: Male
·Current rating: 1A
·Voltage rating: 12VDC
·Inner diameter: 2.1mm
·Outer diameter: 5.5mm
·Barrel length: 9.0mm
·Orientation: Straight
·Mouting type: Cable mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 24VDC 2A
·Withstand voltage: 500VAC for 1 minute

Materials

.Insulator ring: Nylon+fiber,black
.Inner barrel: Brass, nickel plated
.Crimping tube: Brass, nickel plated
.Outer sleeve: Brass, nickel plated
.Ground terminal: Brass, nickel plated
.Housing: ABS, black
