Electrical Characteristics
Overview

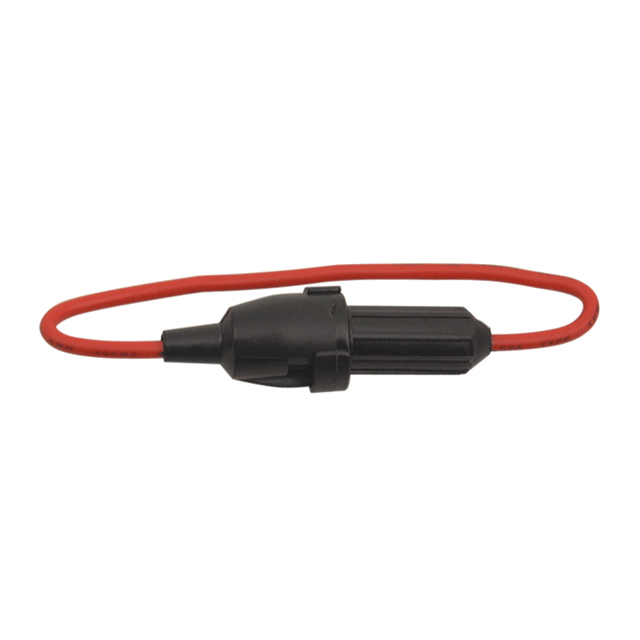

Fuse Holder – Secure Fuse Mounting
Fuse holders mount and protect electrical fuses for safe circuit protection. Available in panel, PCB, and in-line types, they provide insulation, easy replacement, and reliability in power and electronics applications.
Specifications
·Current rating: 10A Max.
·Fuse size: 5.2 x 20mm
·Fuse type: Automotive
·Mounting: In-Line
·Termination: Wire leads
·Contact resistance: 5mΩ at 1A DC
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Lead wire size: 20 AWG
·Lead wire length: 200 mm
Materials
·Body: Nylon
