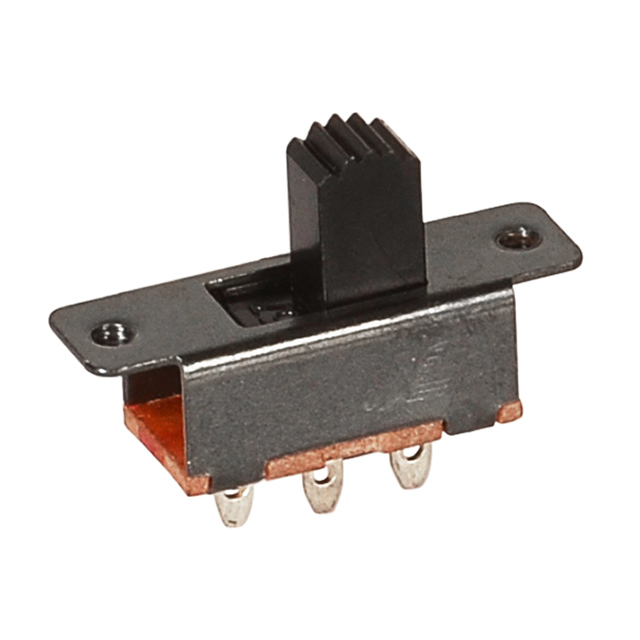

3P slide switch (1P2T)
Unit price (USD)
Quantity Price
10+ 0.5663
40+ 0.3236
200+ 0.1888
400+ 0.1573
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics


·Circuit: 1P2T
·Rating: 0.5A 50VDC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC 10mA for 5 second (terminal-knob)
·Life: 10,000 cycles
·Operating force: 2.0~3.5N
·Ambient temperature: -25°C to +85°C
