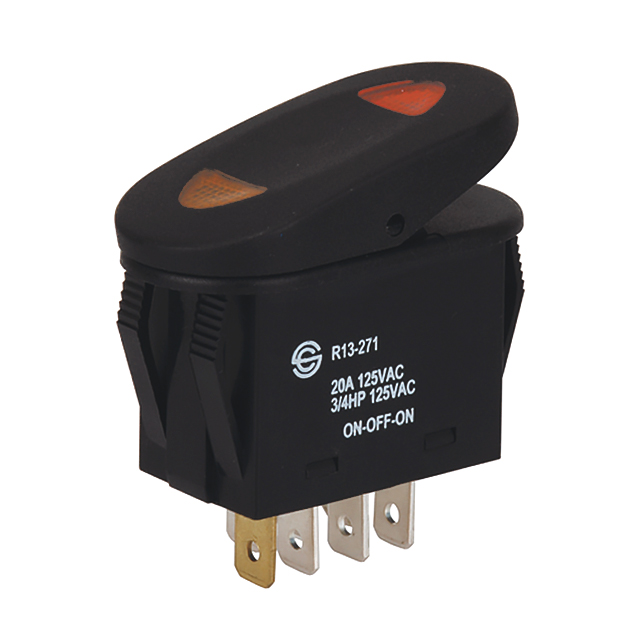

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: DPDT
·Switch function: On-Off-On
·Rating: 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operating temperature: -20°C to +85°C
Materials
·Frame: Nylon#66, black
·Actuator: Nylon#66 + 33%GF, black
·Lens 1: Green clear, PC
·Lens 2: Red clear, PC
·LED 1: Green
·LED 2: Red
·Printed: None
