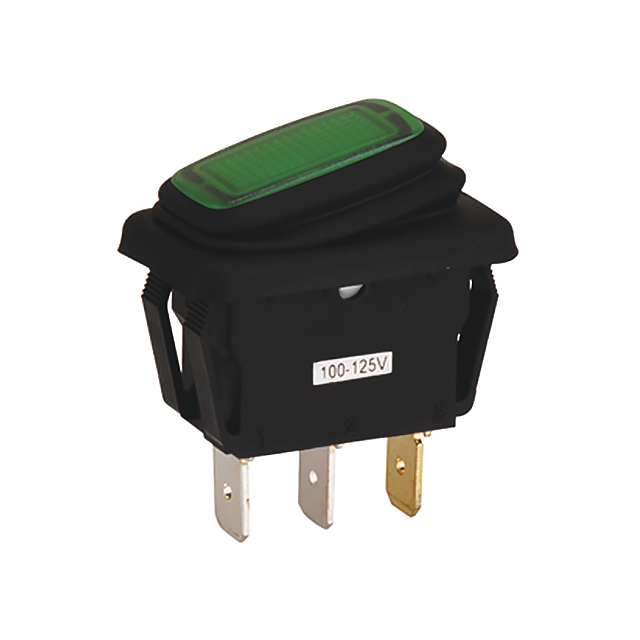

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.

Specifications

·Circuit: SPST
·Switch function: On-Off
·Rating: 20A 125VAC / 16A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operating temperature: -25°C to +85°C

Materials

·Frame: Nylon#66, black
·Actuator: PC clear, red
·Waterproof rubber: Silicone, black
·Terminals 1,2: Copper alloy, silver plated
·Terminal 3: Brass alloy
·Printed: None
