Electrical Characteristics

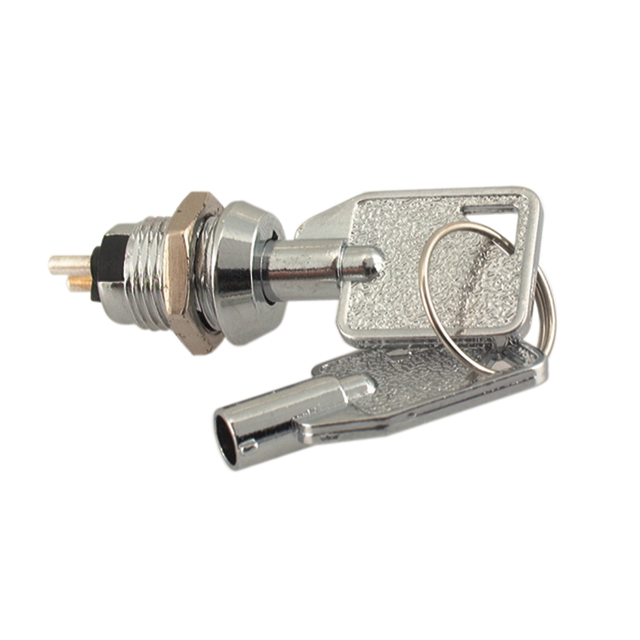

Descriptions
·Zinc alloy die cast housing and cylinder
·Nickel plated standard
·No pin tumbler mechanism
·Zinc alloy tubular keys, nickel plated
·Key withdrawals in both positions only
·Silver plated contacts and terminals
·2 position (off-on) 2 terminals
·Hex nut mounted
·1 combination only
Specifications
·Rating: 0.2A 125VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 200MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
