Total: 45 Products

Product

Product Details
Price
Data Sheet
Remark
Specification

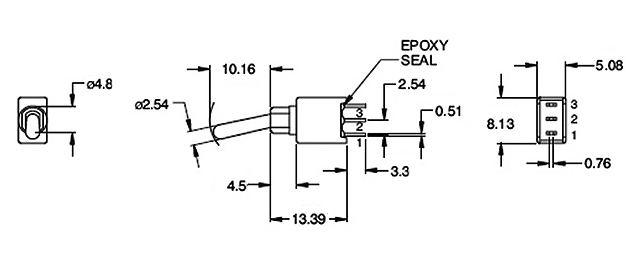

3P sealed sub-mini toggle switch
(SPDT) on-on gold-pin W/approval
Unit price (USD)
500+
0.9747
Add
Enter Quantity to Check Lead Time
Rating: 3A 120VAC / 1.5A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 1,000MΩ Min.
Dieletric strength: 1,000V RMS @ sea level
Electrical life: 50,000 make-and-break cycles

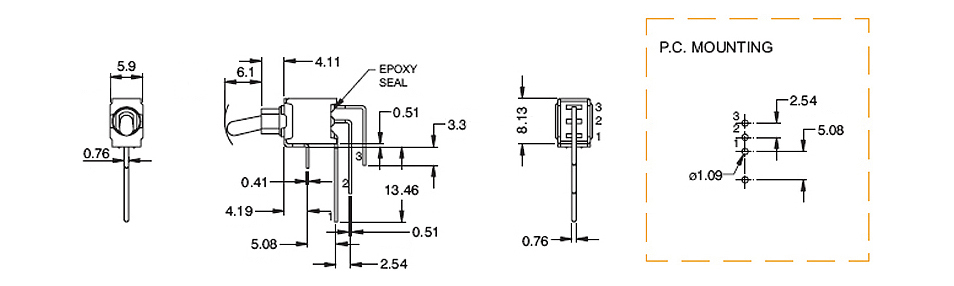

3P sub-mini toggle switch (SPDT)
on-on W/approval
Unit price (USD)
800+
0.6313
Add
Enter Quantity to Check Lead Time
Rating: 3A 120VAC / 1.5A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 1,000MΩ Min.
Dieletric strength: 1,000V RMS @ sea level
Electrical life: 30,000 make-and-break cycles
3P sub-mini toggle switch (SPDT)
on-on W/approval
Unit price (USD)
500+
0.6566
Add
Enter Quantity to Check Lead Time
Rating: 3A 120VAC / 1.5A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 1,000MΩ Min.
Dieletric strength: 1,000V RMS @ sea level
Electrical life: 30,000 make-and-break cycles

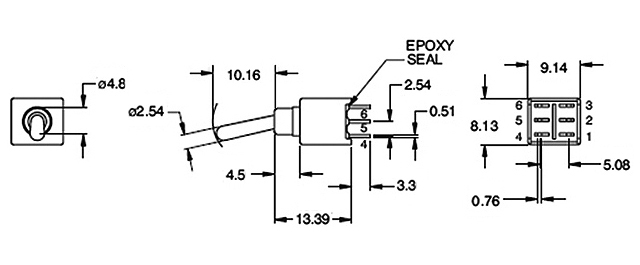

6P sub-mini toggle switch (DPDT)
on-on W/approval
Unit price (USD)
2+ 10+ 50+ 100+
2.3636 1.3506 0.7879 0.6566
Add
Enter Quantity to Check Lead Time
Rating: 3A 120VAC / 1.5A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 1,000MΩ Min.
Dieletric strength: 1,000V RMS @ sea level
Electrical life: 30,000 make-and-break cycles

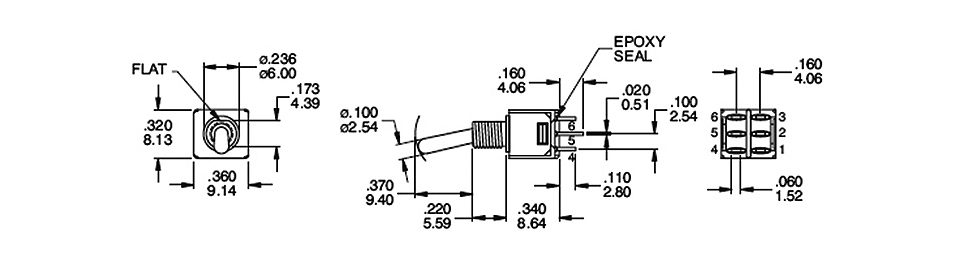

6P sealed sub-mini toggle switch
(DPDT) on-on gold-pin W/approval
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Rating: 3A 120VAC / 1.5A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 1,000MΩ Min.
Dieletric strength: 1,000V RMS @ sea level
Electrical life: 50,000 make-and-break cycles
