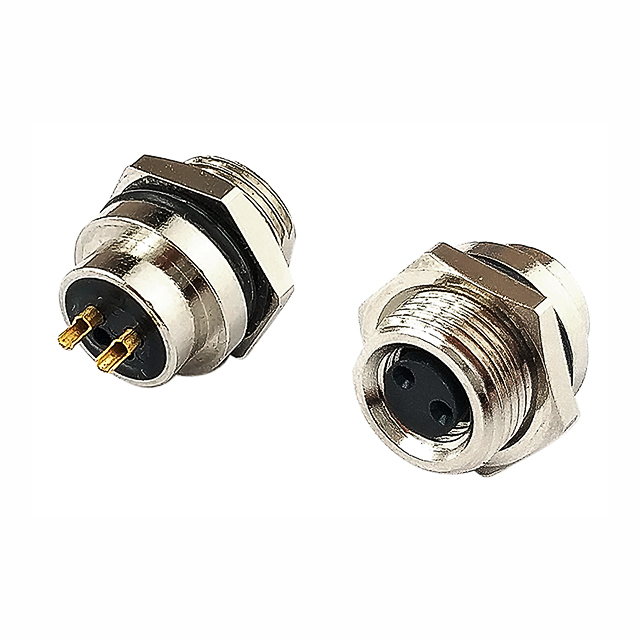

Waterproof female M8 connector 2 contacts 60V 4A
Can reach to IP67
Dieses Produkt ist derzeit online nicht verfügbar,Bitte senden Sie uns Ihre Anfrage!
Datenblatt
Elektrische Eigenschaften

Specifications

·Gender: Female
·Connector size: M8
·No. of contacts: 2
·Rated current: 4A
·Rated voltage: 60V
·Mounting type: Panel mount
·Body orientation: Straight
·Protectiion degree: IP67
·Operation temperature: -20°C to +85°C

Materials

·Housing: PBT (UL94V-0), black
·Contact: Phosphor bronze, nickel plated
·Nut: Brass, nickel plated
·Shell: Brass, nickel plated
·O-Ring-A: NBR, black
·O-Ring-B: EPDM, black
