電器特性

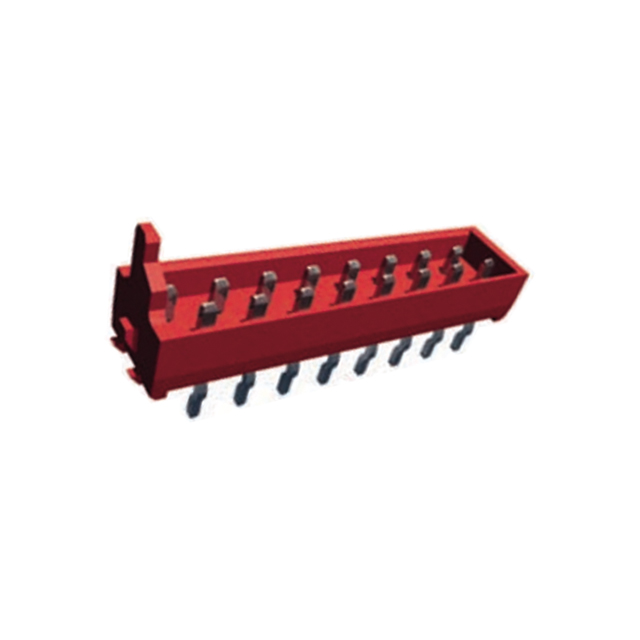

Specifications
·Pitch: 2.54mm
·No. of rows: 2
·No. of contacts: 16
·Current rating: 1A
·Mounting type: Through hole, on board type
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at DC 100VDC
·Withstand voltage: 500VAC RMS for 1 minute
·Operating temperature: -40°C to +105°C
Materials
·Housing: PBT (UL94V-0), red
·Terminal: Phosphor bronze, tin over nickel plated
